All profiles fully sculptured with a true 17.5mm sculpture radius for a more traditional appearance.
All sashes have 'full depth 'Eurogroove', offering choice of espagnollette or shootbolt fittings to meet all specifications.
Design of outer frames and mullions incorporates a positive location for friction stays to ensure correct operation.
Designed to glaze a 28mm unit centrally within the profile, combining improved appearance with maximum thermal performance.
Can utilise existing profiles to glaze wider units, offering different glazing specifications and glass thickness to cater for sound and thermal insulation and safety requirements, offering optimum cavity thickness.
Fitted with weldable gaskets/weather seals offering improved appearance and performance characteristics.
'Low sightline gaskets'... offering improved overall appearance and easier cleaning of the glass.
Comprehensive set of ancillaries, allowing many different installation details to be accommodated.
Two outer frames; 56mm and 70mm, catering for different installation details and window styles.
70mm frame can also be welded, maintaining the reinforcement chamber, catering for different installation details without need for add-ons.
Six mullions, catering for different installation details, performance requirements and window/door styles.
Designed to allow 8,000mm² ventilation to ensure ease of compliance with building regs for new build and replacement purposes.
Slim 75mm sculptured sash for optimum performance and appearance incorporating continuous reinforcement at lock case for added strength and security; Available in white, cherrywood, rosewood and rosewood/cherrywood on white.
00mm outer frame {{image:395190}}
05mm Z muthion {{image:395191}}
06mm fette muthion {{image:395193}}
100mm open in residential door {{image:395195}}
08mm outer frame {{image:395196}}
00mm T muthion {{image:395197}}
05mm open in french door sash
110mm open out residential door
Top Opening Casement
Bottom Opening Casement
Half Round Head Bottom Opening Casement
Dashed arrow points to hinged end of opening casement
Sliding Sash
Sliding Sash 1/3 : 2/3 Split With Glazing Bars

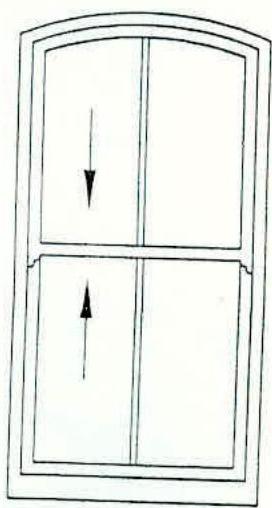

Sliding Sash Arch Headed
Solid arrows indicate direction of movement of sliding sashes
