Bayview Farm Site Survey Report

Site overview (Google earth image with turbine, connection point etc marked) Pictures taken from proposed location looking to the North, South, East & West

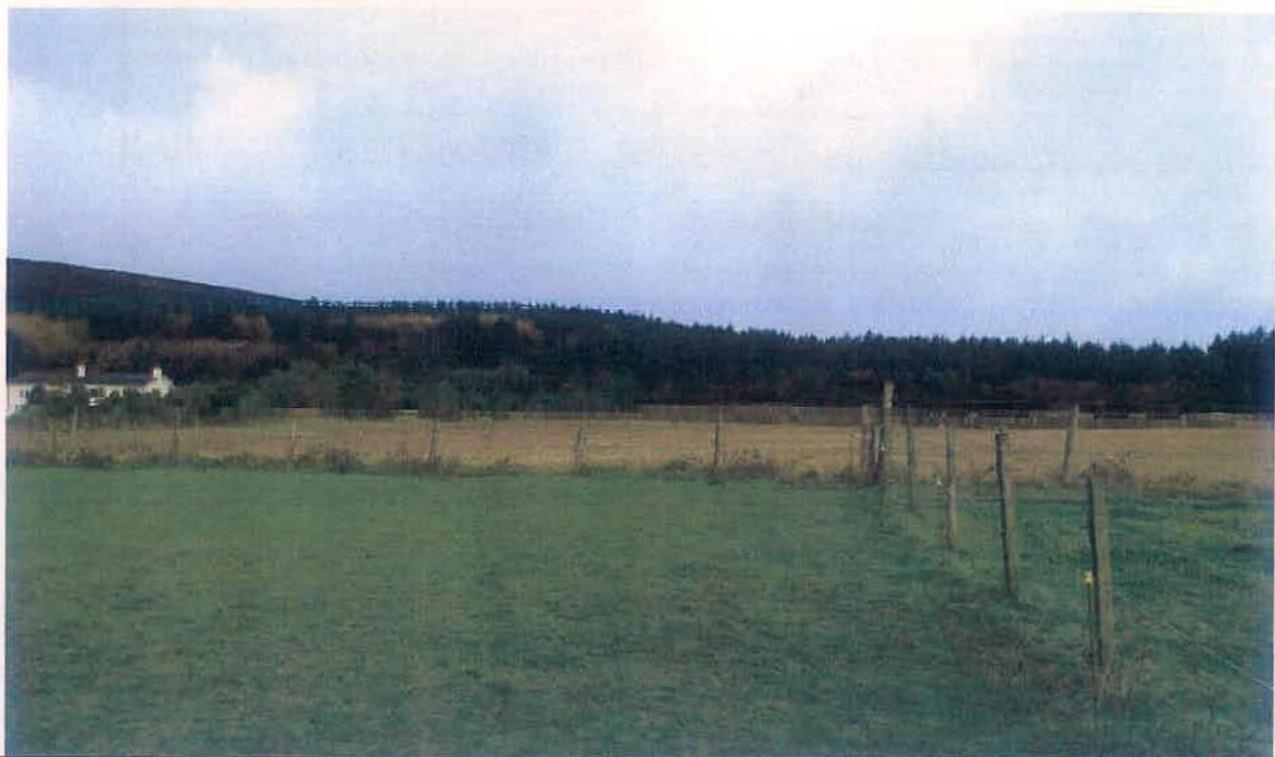

North

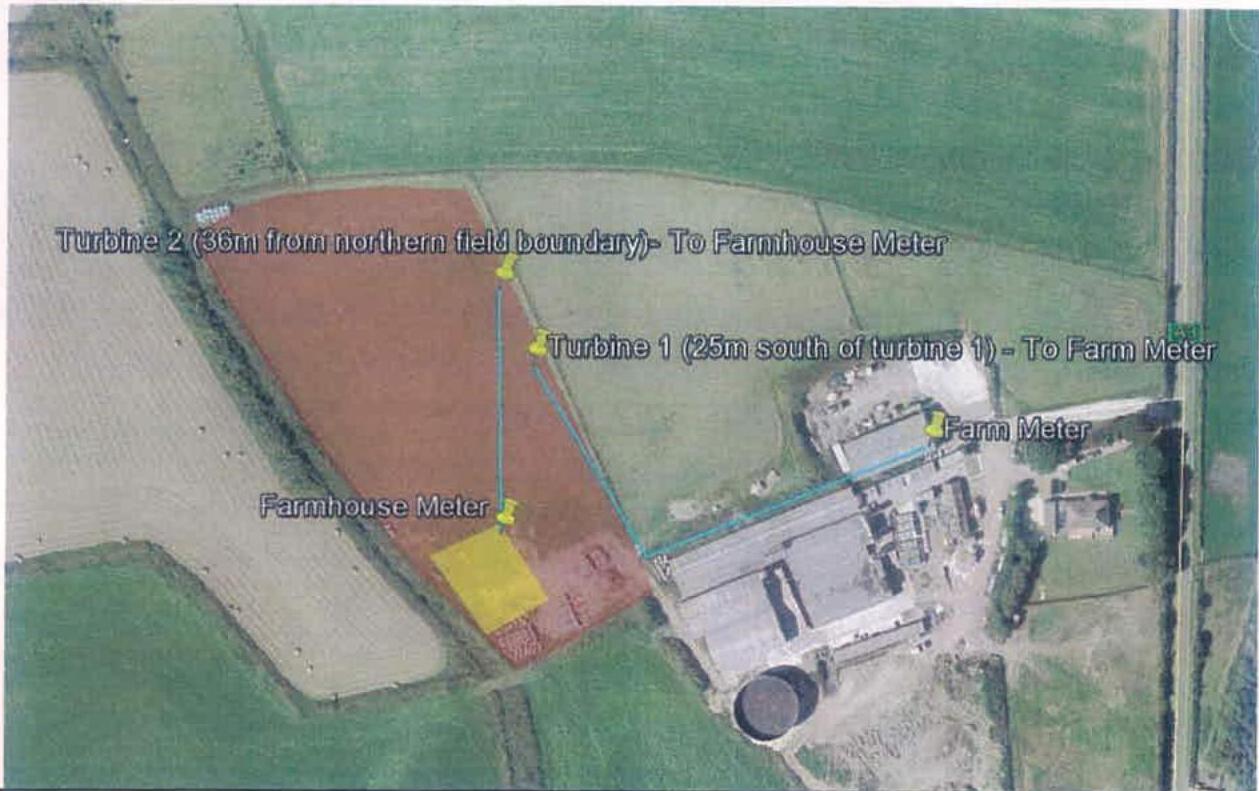

An aerial site plan showing the proposed locations for two wind turbines in a field adjacent to farm buildings. The map includes annotations for cable routes to meters and distances from field boundaries.

Page 13 of 17

A photograph showing a rural landscape with a green field in the foreground, a wooden fence line, and a tree-covered hill in the background with a white house visible on the left.

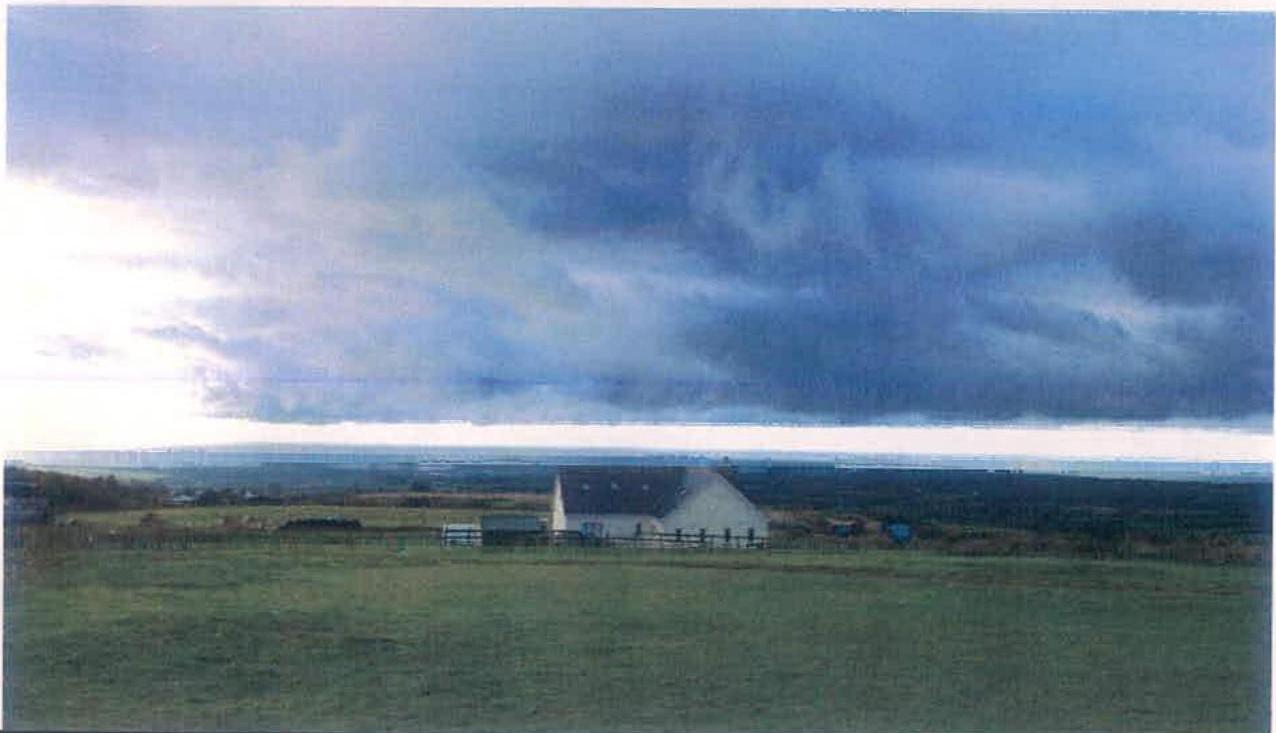

A photograph showing a rural landscape with a white building in the middle ground and a view of the sea in the distance under a cloudy sky.

East

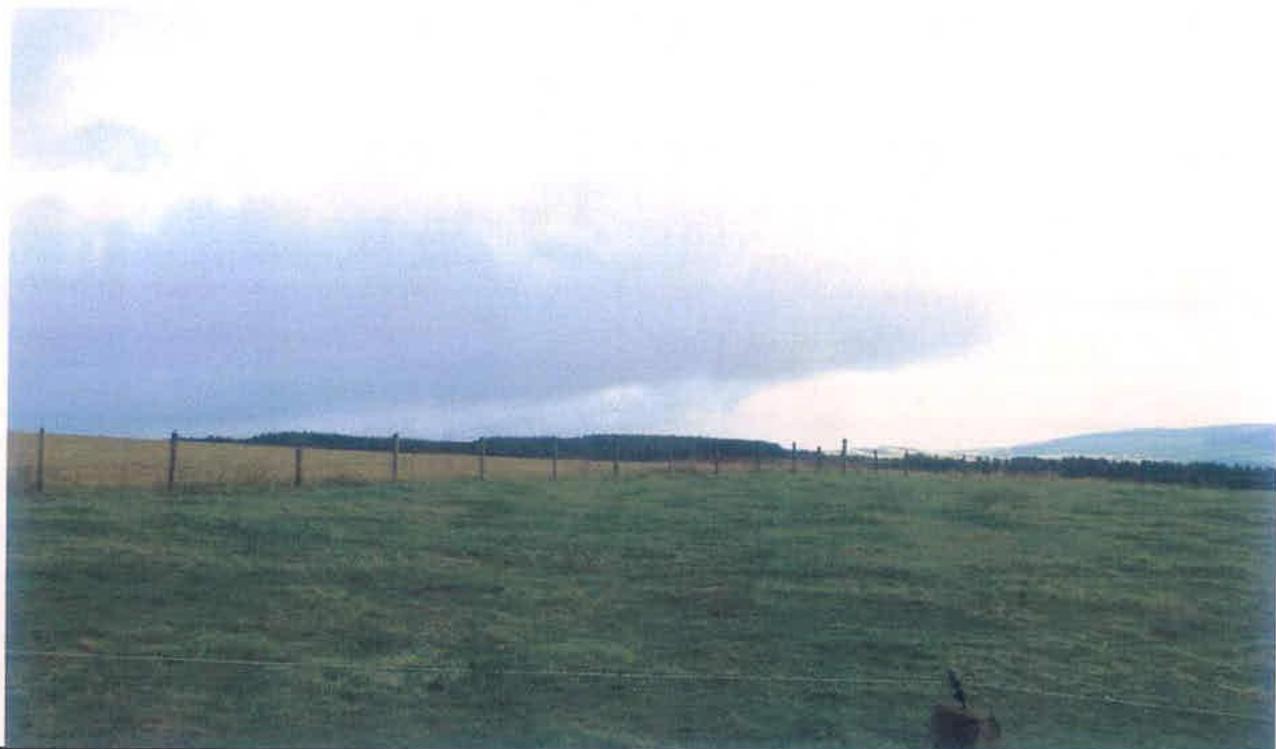

South - (illustrating aspect to farmhouse from Turbine 2)

A photograph of a rural landscape featuring a grassy field in the foreground, a wooden post fence, and a crop field in the background with hills.

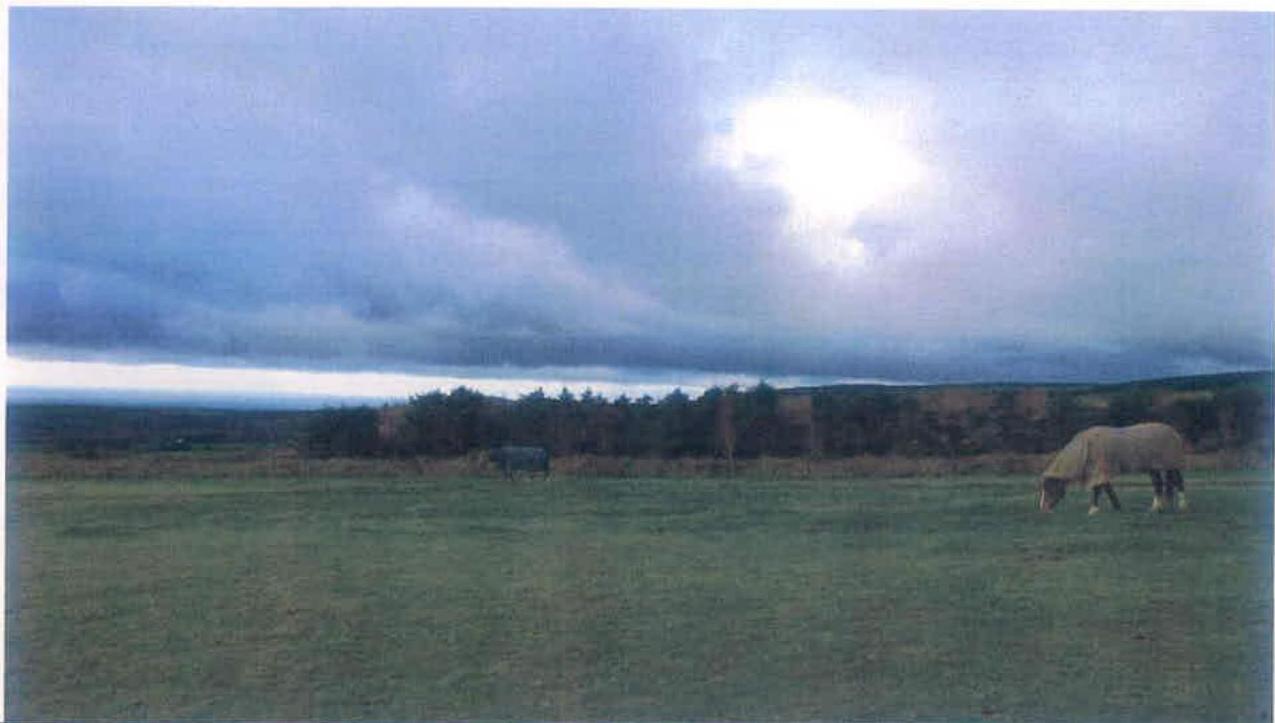

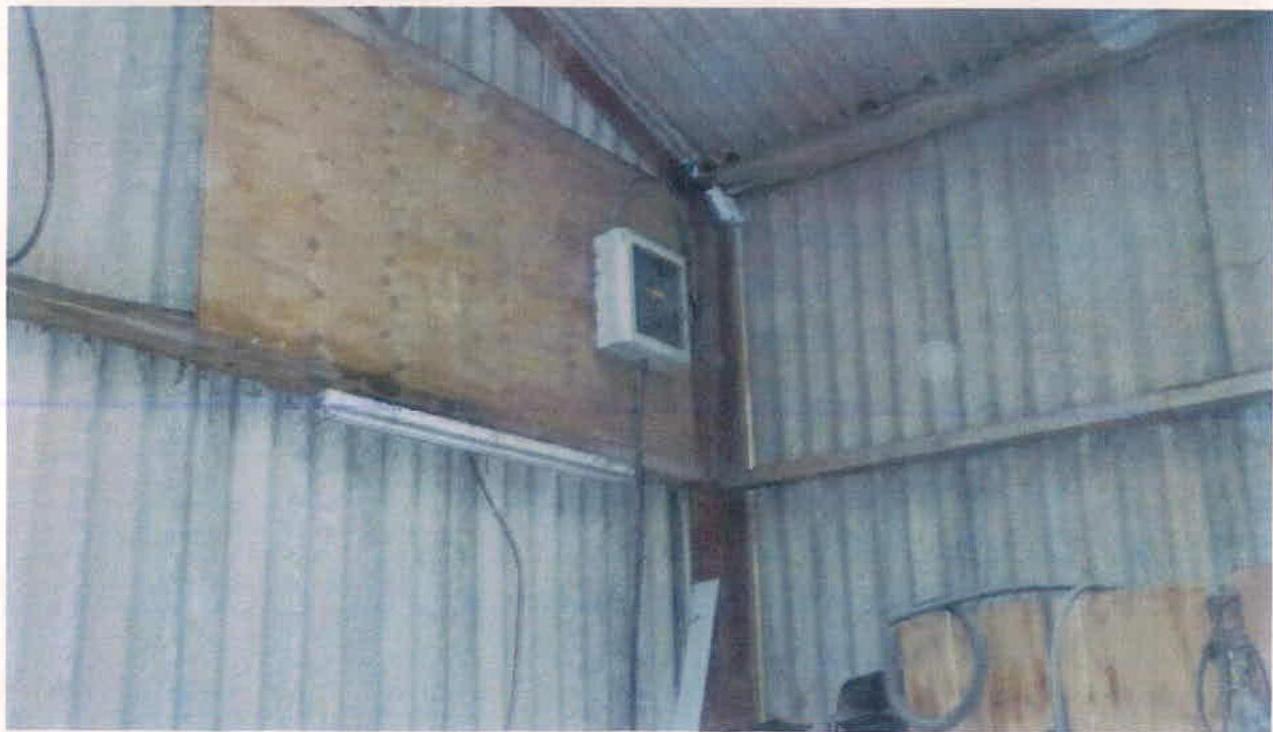

West (illustrating tree belt) Proposed electrical panel position - Turbine 1

A photograph of a rural landscape featuring a grassy field with a horse grazing in the foreground and a line of trees in the background under a cloudy sky.

Interior photograph of a corrugated metal outbuilding, likely a shed or barn, showing an electrical control box mounted on a wooden panel.

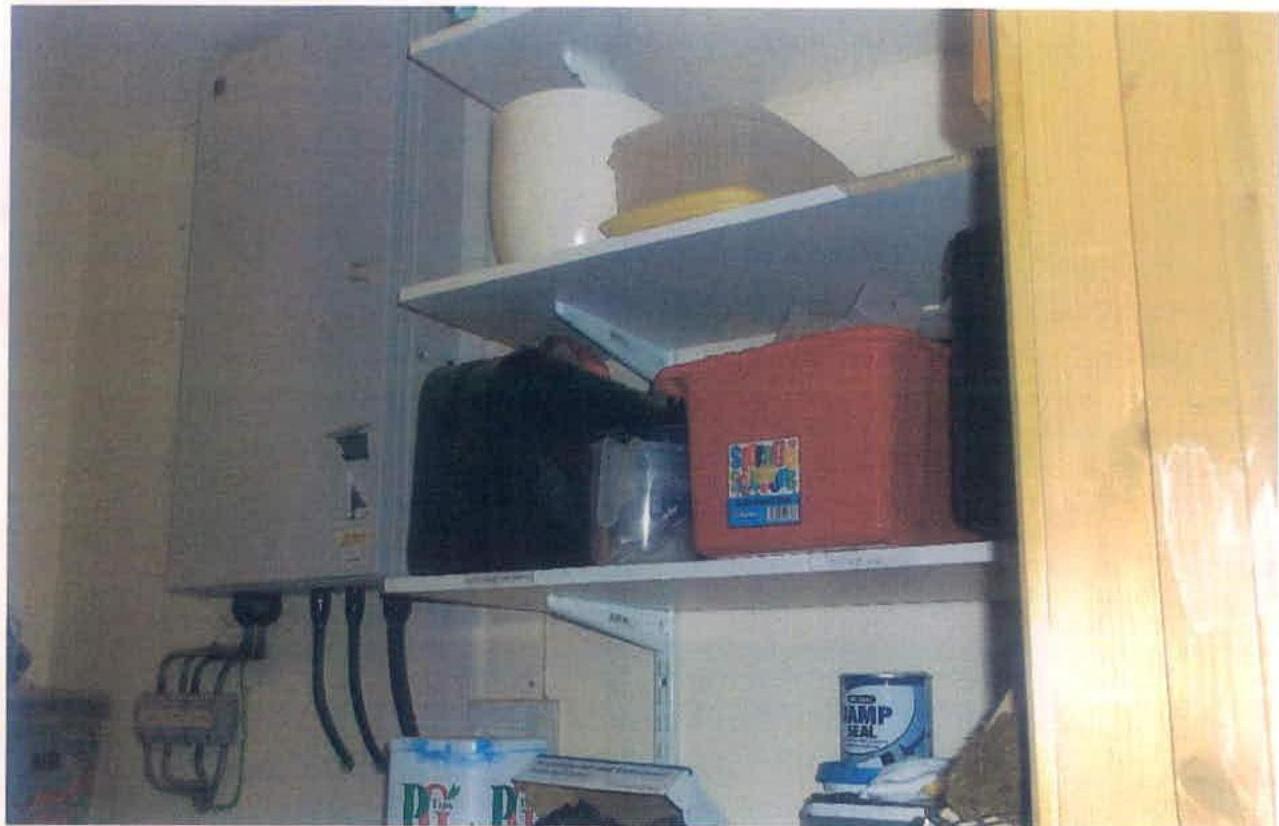

Proposed electrical panel position - Turbine 2

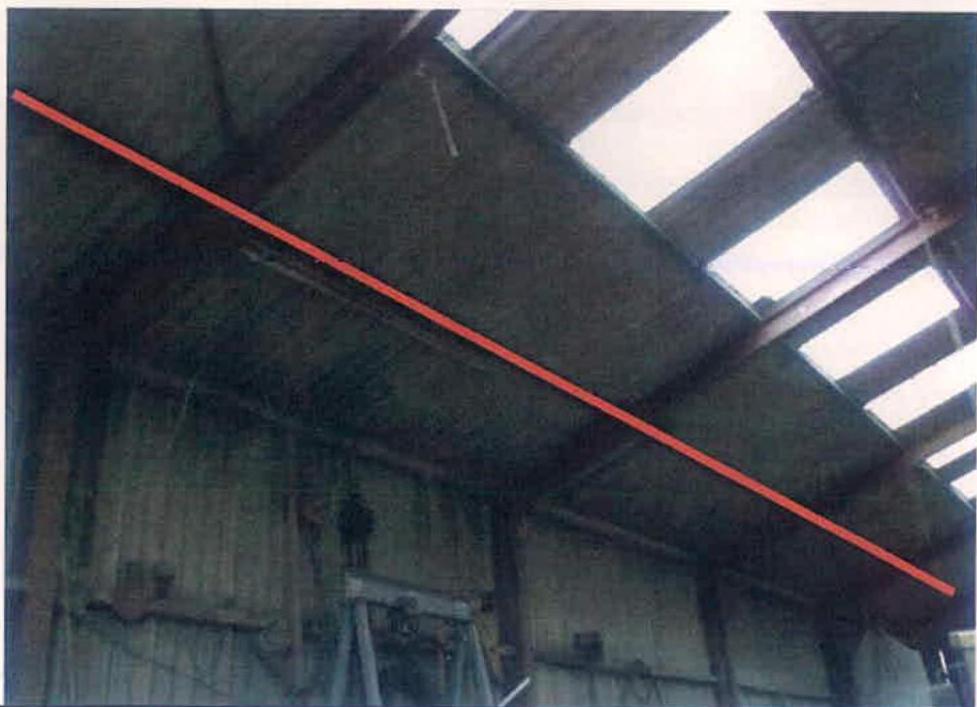

Cable Run within Barn:

A low-quality photograph showing the interior of a utility cupboard or control unit containing an electrical enclosure on the wall and shelves with storage boxes.

A photograph showing the interior roof structure of a large agricultural building with skylights and a red line drawn across the frame.

Site Survey Report

Bayview Farm Site Survey Report
