Grass Protection Methodology Plan

ISO A1 594mm x 841mm

STORAGE] T02.DWGLast saved by: MCENEANEYSLast Plotted: 2024-12-19Project Management Initials:Designer:Checked:Approved:_______________

Filename: C:\USERS\MCENEANEYS\AECOM\60661925 - CRINGLE SPILLWAY - GENERAL\900_CAD_GIS\910_CAD\01-WIP\CE\01_01-DRAWINGS\DETAILED DESIGN\2024.12.05 REVISION\CS-ACM-ZZ-XX-DR-CE-2010 [CRINGLE SPILLWAY - GRASS

Existing bypass channel

W

Area within which Contractor must use ground mats for vehicle movements. Ground excavation is permitted within this area to create trenches. Corridor width: 6m to 8m. Area may require reseeding with grass following completion of the works; advice to be given by ECoW; reseeding methodology as per Technical Note attached to pre-tender CEMP

Steps

Area where contractor is permitted to undertake works including ground works such as soil removal and excavation with no protective matting<br><br>required. Corridor width: 6m to 10m<br><br>Area to be reseeded with grass following completion of the works; refer to Technical Note (pre-tender CEMP) for details

Chamber

Indicative location of known live Asbestos Cement watermain

Access corridor only. No works to be undertaken within this area.Ground protective matting to be used within this area. Area may require reseeding with grass following completion of the works; advice to be given by ECoW; reseeding methodology as per Technical Note attached to pre-tender CEMP

Access corridor only. No works to be undertaken within this area.Ground protective matting to be used within this area. Area may require reseeding with grass following completion of the works; advice to be given by ECoW; reseeding methodology as per Technical Note attached to pre-tender CEMP

H H

Public footpath - accessible throughout duration of works

Existing pedestrian access bridge over Spillway Channel

Fungi rich grassland

Existing timber fence to both sides of spillway channel

Existing access track width Approx. 3m wide

Protective matting to be used

1 2

Existing private site access

Corlea Road

Orchid recipient areas; Area 1 is the preferred site; area 2 is a supplementary site;

Area to be fenced off for the duration of works or as long as advised by ECoW

Welfare compound

Area may require reseeding with grass following completion of the works; advice to be given by ECoW; reseeding methodology as per Technical Note attached to pre-tender CEMP

Corlea Road

Existing Cringle Reservoir public car park

Public road

Corlea Road

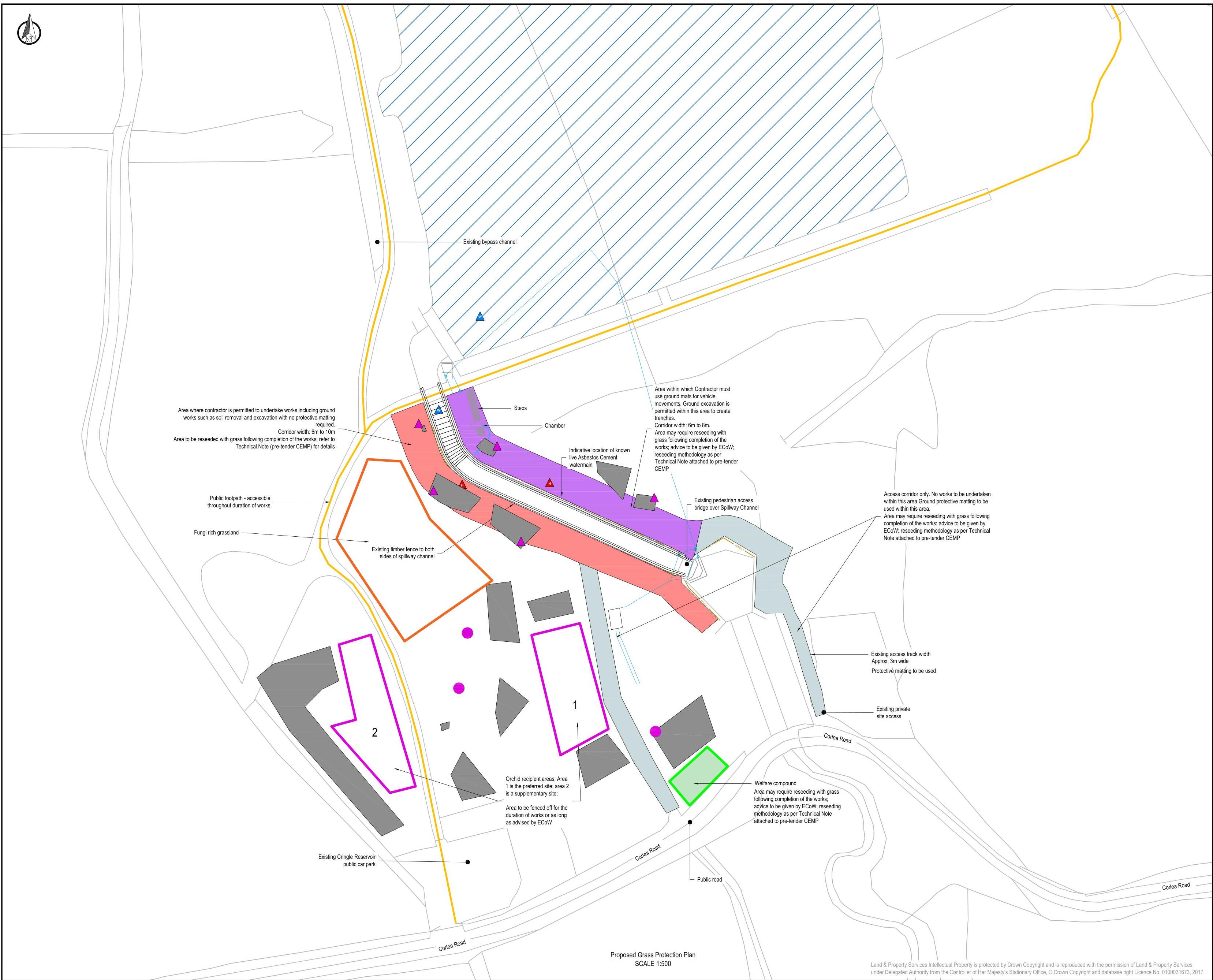

Proposed Grass Protection Plan SCALE 1:500
