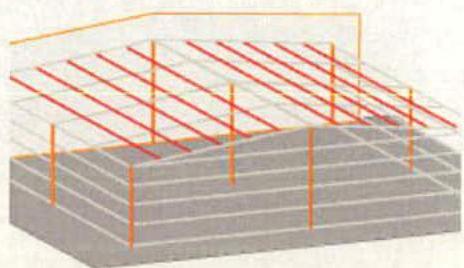

Roof substructure
5
-
5
PV-Modules
6
-
6
Anchor type & model
7
-
7

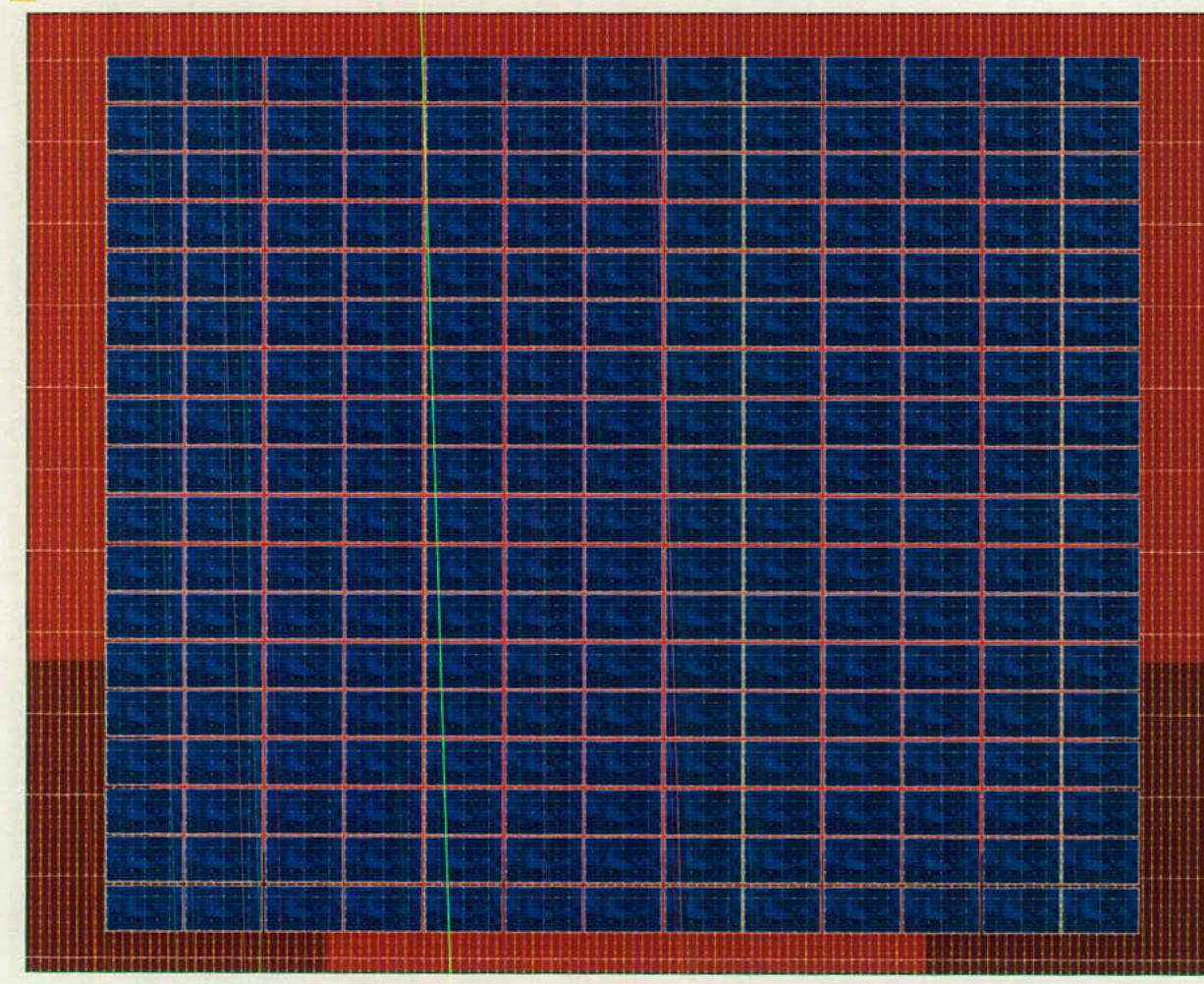

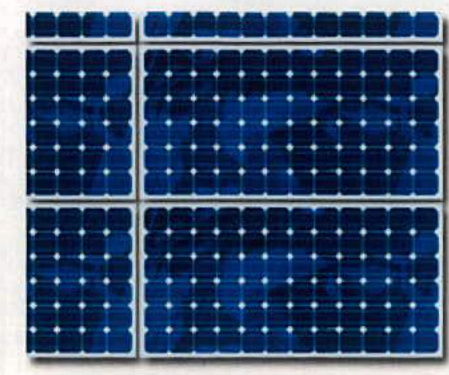

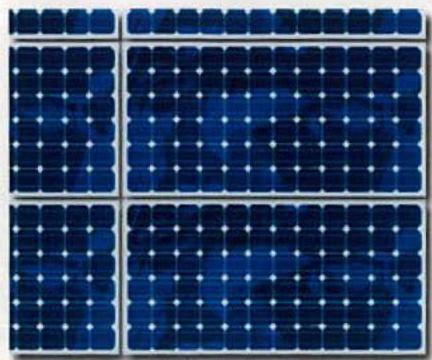

Module layout plan
8
-
8
Position
9
-
9
3D Image - from Screenshot
10
-
11
Installation Instructions
12
-
12
Static CAD
13
-
13
Static Information: Areas
14
-
14
Resulting surface stresses
15
-
15
Resulting surface stresses Bereiche
16
-
17
Material list
18
-
18
Additional Information
19
-
19
Master data
Name
Company
Street Address
Jurby Road
Postal code
City
Ramsey
Phone
Email
Notes
Country
United Kingdom
Latitude
54.32949
Longitude
-4.40069
Altitude
19
Project Address
Project Name
MVIC
Comment
MS+
Planning Responsible
Darren Painter
System Size [kWp]
60.84
Amount Modules
234
Modul Surface [m²]
380.69
1 Renusol

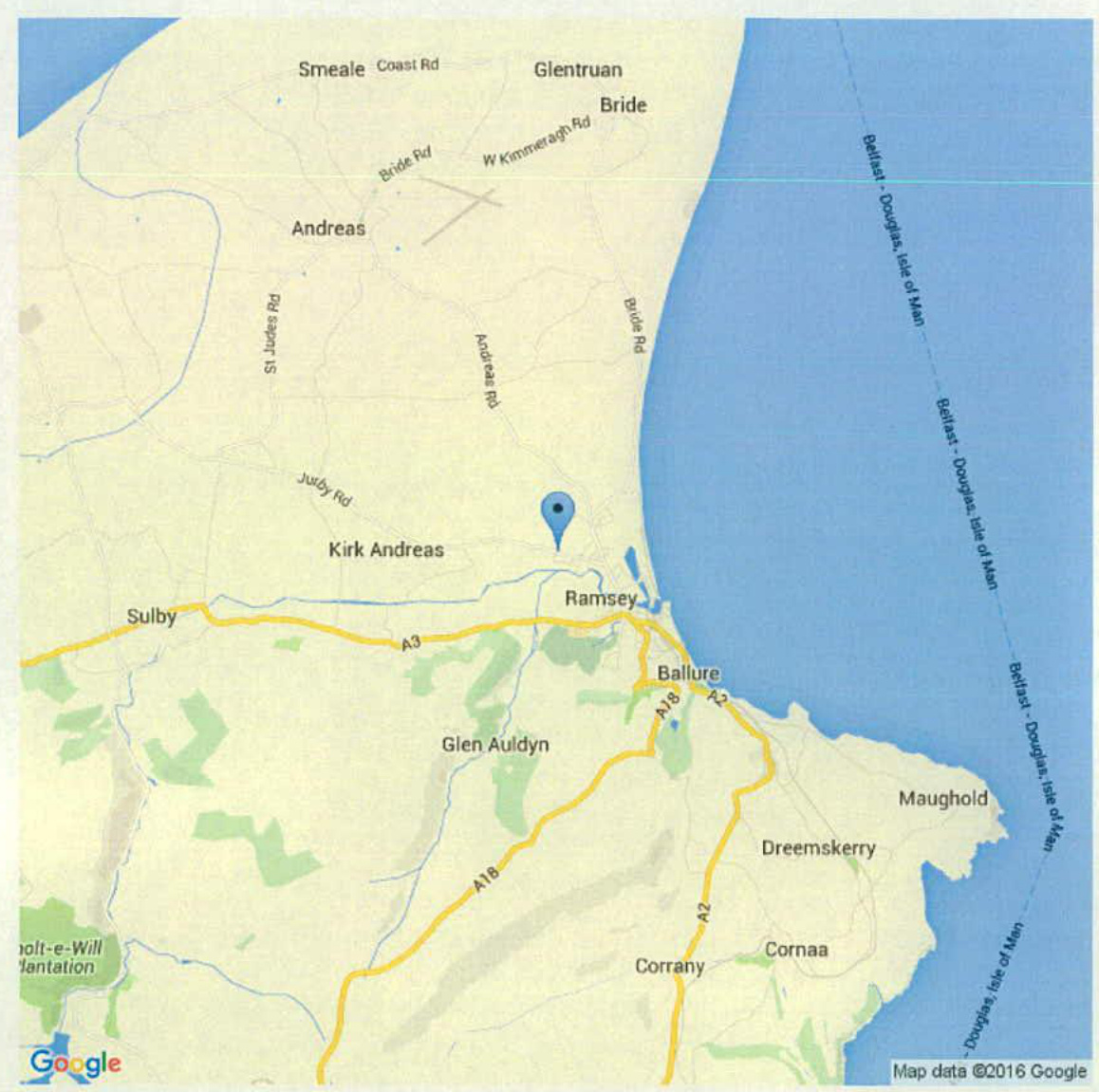

A Google Maps screenshot displaying the site location pin near Ramsey and Kirk Andreas on the Isle of Man.
Project Location - Google Maps
Roof [Roof_1]
else ( )
Ridge roof
Alignment [°]*
Ridge roof
Alignment [°]*
{{image:729373}} Snow load NA BS EN 1991-1-3:2003 {{table:424034}} Wind load NA BS EN 1991-1-4:2005 {{table:424035}}
Wind load [kN/m²]
1.15
Wind load calculation according to BRE 489
Yes
Elevation altitude [m]:
19
Wind speed [m/s]
25
Building height h [m]*
12.94
Terrain categories
0
z-hdis
12.94
Construction Design (CD) -- Roof beam [Roof_1]
Distance [mm]
1700
First raised bead of Verge left [mm]
300
Material
Steel
Distance between crowns i [mm] )
190
Trapezoidal Sheet Height c [mm]*
35
First crown after [mm]
100
Crown width [mm]*
95
Roof Beam Height o [mm]
175
Roof Beam Width p [mm]
75
Material of sheet:
Steel
Sheet Thickness [mm]*
0.7
```markdown
Per-Form
Per-Modules [Roof_1]
Manufacturer:
ReneSola Ltd.
Name
ReneSola Virtus II JC260M-24/Bb
Width [mm]:
992
Height [mm]:
1640
Thickness [mm]:
40
Framing:
Aluminium
Weight (kg)
18.5
Nominal Power [Watt]:
260
Module Type:
Polycrystalline
Installation:
On Both Sides
Frame color
Aluminium
Anchor type \& model [Roof_1]
Fixation type
Load on Fixation Rail installation system Fixation multiplier Supports only within module area: Overload Factor (z.B. 1.25) :

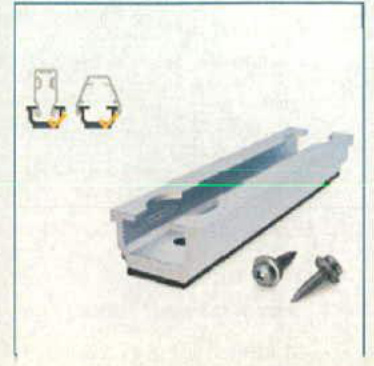

MetaSole + Blechstärke: Stahl 0,50-1,25 mm; Alu 0,50-1,50 mm MetaSole + Blechstärke: Stahl 0,50-1,25 mm; Alu 0,50-1,50 mm Note: The sandwich manufacturer's consent must be obtained prior to installation on sandwich roofing
Metasole 1 No 1
```markdown
Renasol
Solar Mounting Systems
Module layout plan [Roof_1]
Alignment:
Landscape
Horizontal module distance [mm]:
24
Vertical module distance [mm]:
24
Horizontal starting point (left bottom mm):
300
Vertical starting point (left bottom in mm):
300
Position [Roof_1]
