The following values are based on exact calculations on calibrated lamps, luminaires and their arrangement. In practice, gradual divergences can occur.
Guarantee claims for luminaire data are excluded.
Relux and the luminaire manufacturers accept no liability for consequential damage and damage which is occasioned to the user or to third parties.
Relux1.rdf
Page 1/11
Object : Nunnery Proposed Car Park Lightir Installation : Road Lighting Tests Project number : P1658 Date : 13.05.2016
1 Exterior 1(Copy of) PROFESSIONAL LIGHTING DESIGN

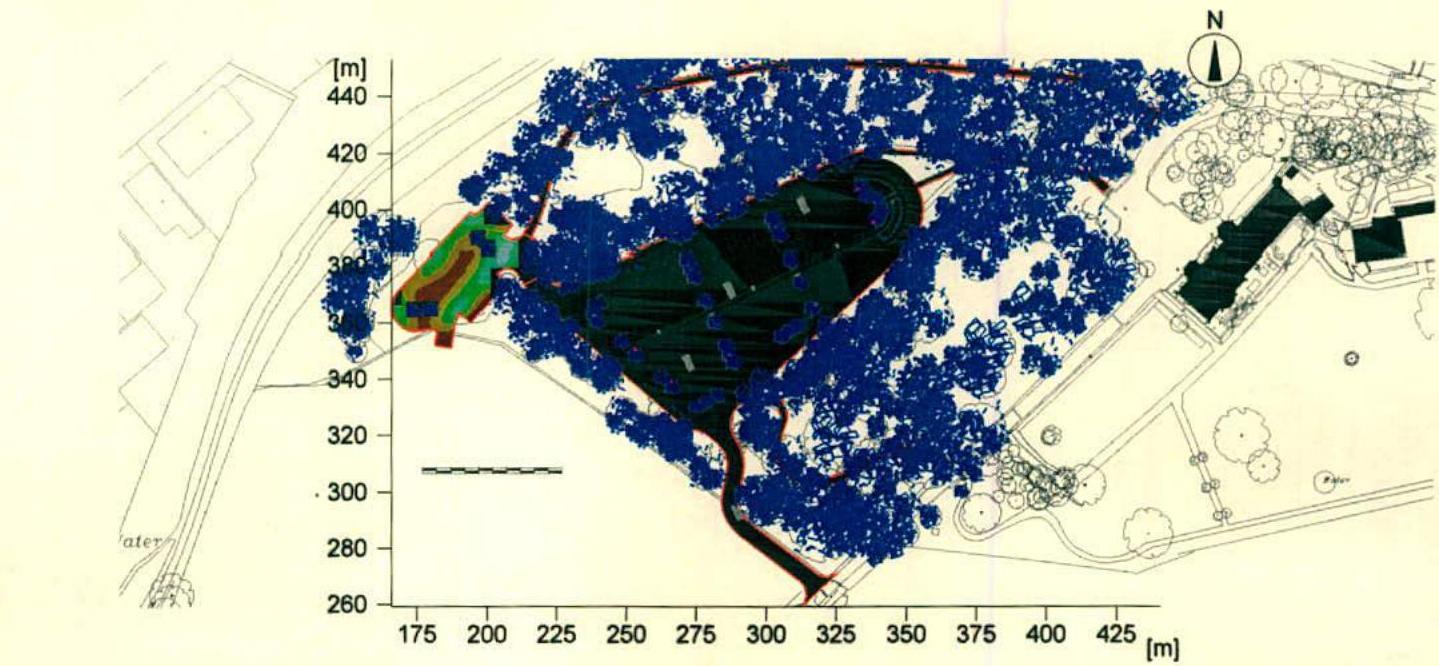

1.1 Description, Exterior 1(Copy of) 1.1.1 Floor plan
Relux1.rdf Page 2/11 {{image:175877}}
1 Exterior 1(Copy of)
5
7.5
10
15
20
1.2 Summary, Exterior 1(Copy of)
1.2.1 Result overview, Reference plane 1
Illuminance [lx]
General
Calculation algorithm used: Average indirect fraction Height of evaluation surface: 0.40 m Maintenance factor: 0.80
Total luminous flux of all lamps: 200660 lm Total power: 2044.8 W Total power per area (9833.66 m²): 0.21 W/m² (1.78 W/m²/100lx)
Illuminance
Average illuminance:
Minimum illuminance: Eav 11.7 lx
Maximum illuminance: Emin 0.1 lx
Maximum illuminance: Emax 23.7 lx
Uniformity g1: Emin/Em 1:89.6 (0.01)
Uniformity g2: Emin/Emax 1:182 (0.01)
iGuzzini
4 24
☐ Order No. : Composition
☐ Luminaire name : UFO
☐ Equipment : 1 x Profile 01-04 25 W / 2960 lm
6 22
☐ Order No. : BY83_1272_X126
☐ Luminaire name : Twilight
☐ Equipment : 1 x LED WARM 17 W / 1910 lm
1 Exterior 1(Copy of)
1.2 Summary, Exterior 1(Copy of)
1.2.1 Result overview, Reference plane 1
7 10
Order No. : Composition Luminaire name : UFO with : 1 x subLum 1 Equipment : 1 x Profile 01-04 37 W / 4380 lm with : 1 x subLum 2 Equipment : 1 x Profile 01-04 37 W / 4380 lm
1.2 Summary, Exterior 1(Copy of)
6
22
Order No.
: BY83_1272_X126
Luminaire name
: Twilight
Equipment
: 1 x LED WARM 17 W / 1910 lm
A technical site plan displaying topographical data, vegetation coverage in blue, and proposed access routes with coordinate axes.

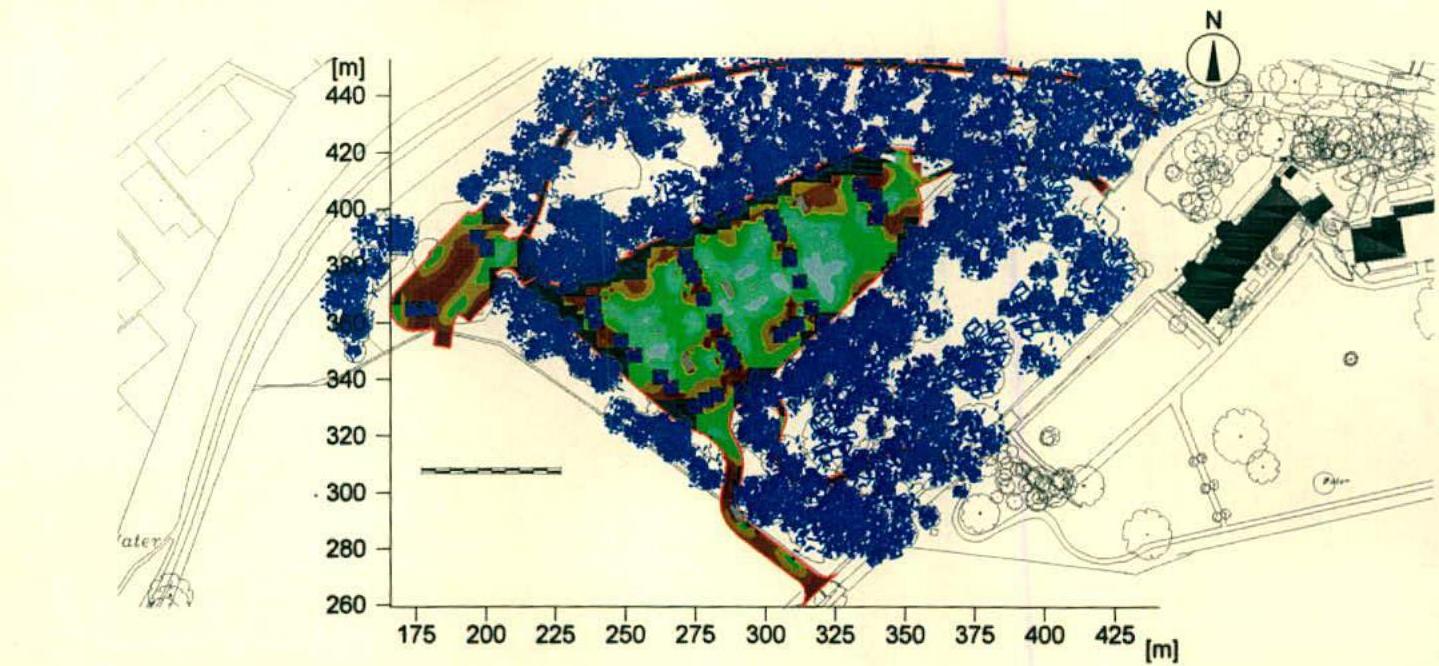

1.2.2 Result overview, Measuring area (virtual) 1
Illuminance [lx]
General
Calculation algorithm used: Average indirect fraction Height of evaluation surface: 0.12 m Maintenance factor: 0.80
Total luminous flux of all lamps: 200660 lm Total power: 2044.8 W Total power per area (9833.66 m²): 0.21 W/m²
Order No. : Composition Luminaire name : UFO with : 1 x subLum 1 Equipment : 1 x Profile 01-04 37 W / 4380 lm with : 1 x subLum 2 Equipment : 1 x Profile 01-04 37 W / 4380 lm
1 Exterior 1(Copy of)
1.3 Calculation results, Exterior 1(Copy of)

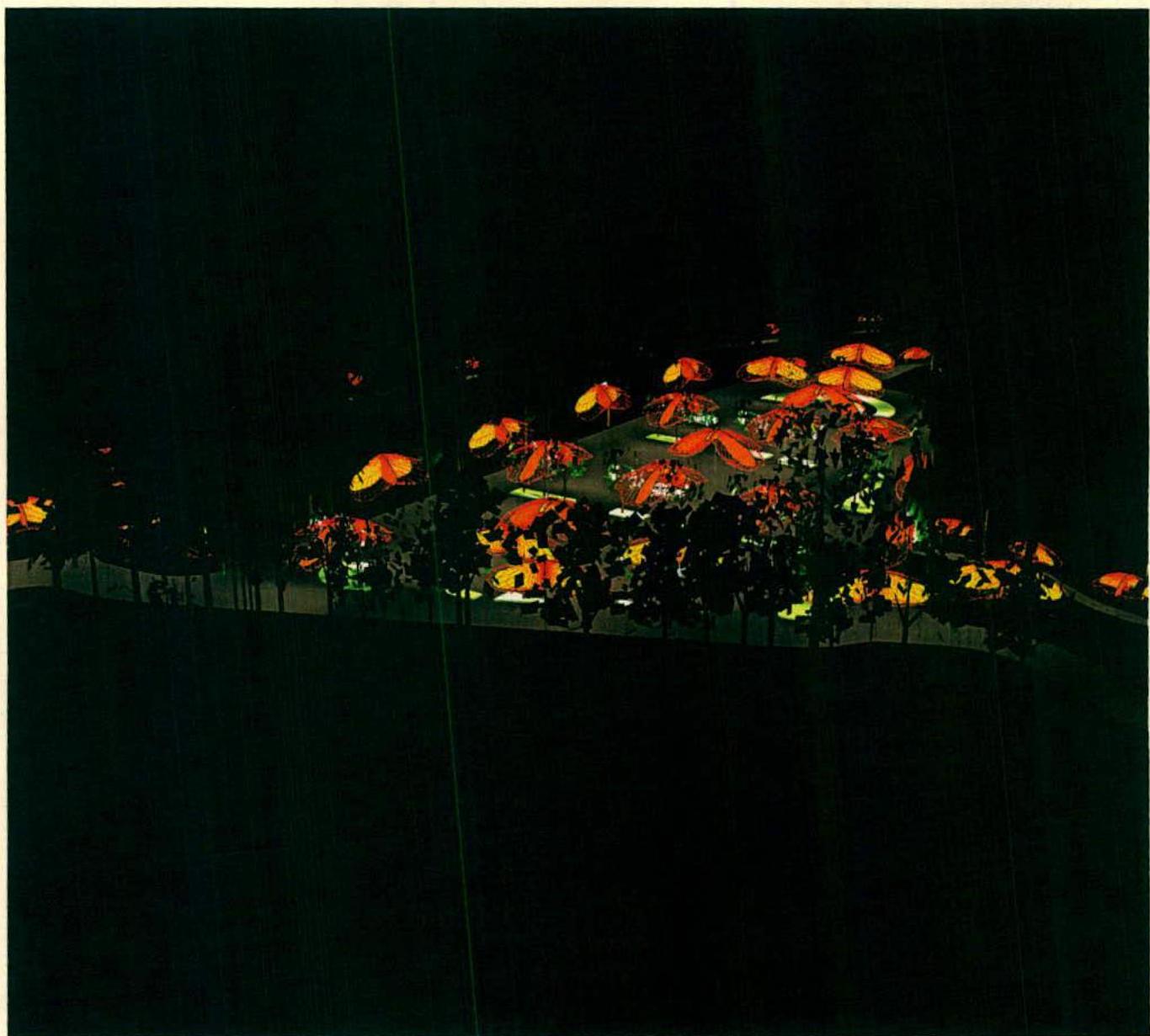

1.3.1 3D luminance, View 1
Luminance in the scene Minimum: $0 \mathrm{cd} / \mathrm{m}^{2}$ Maximum: $277 \mathrm{cd} / \mathrm{m}^{2}$
Object : Nunnery Proposed Car Park Lightir Installation : Road Lighting Tests Project number : P1658 Date : 13.05.2016
PROFESSIONAL LIGHTING DESIGN
1.3 Calculation results, Exterior 1(Copy of)

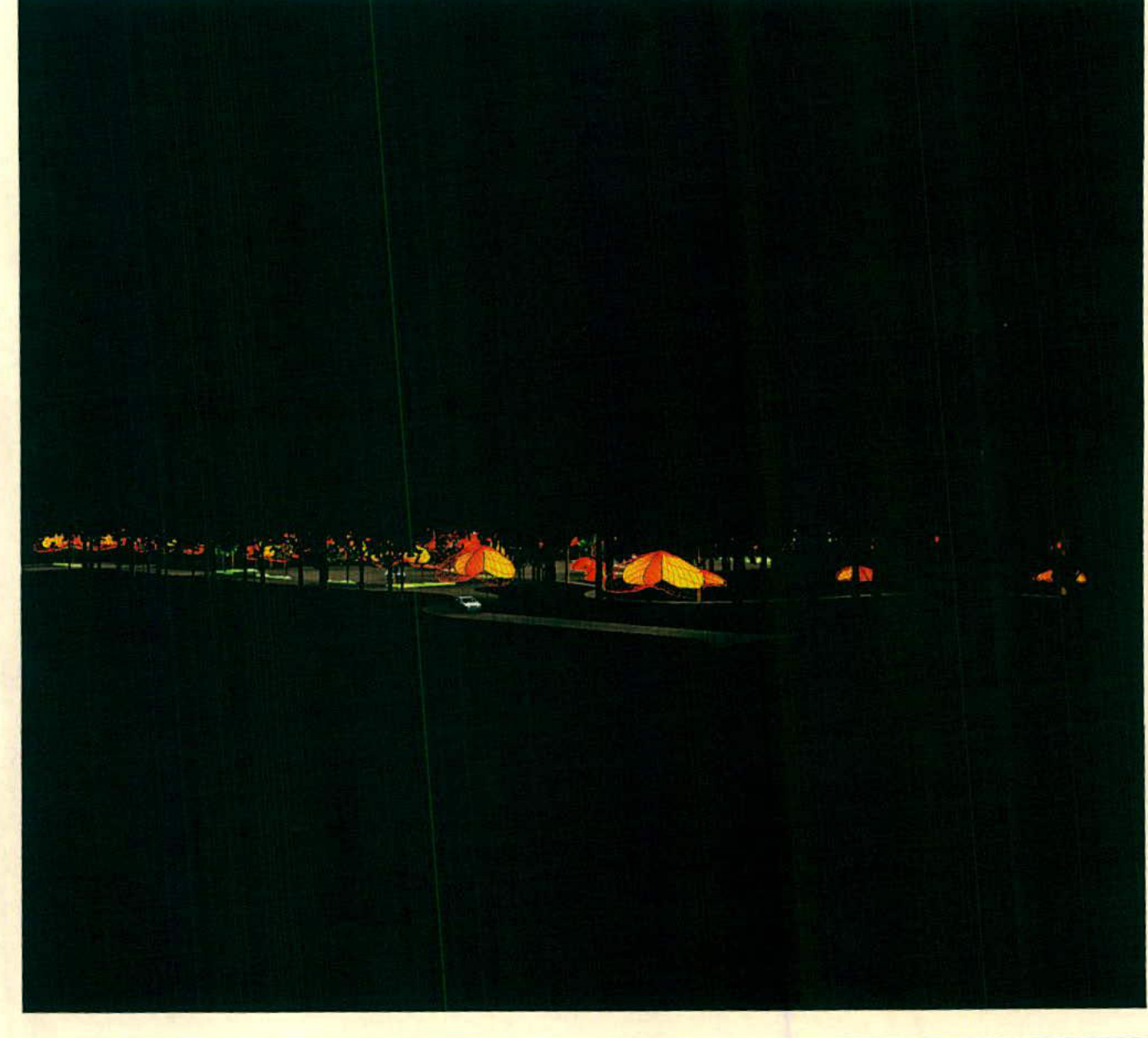

1.3.2 3D luminance, View from the front
Luminance in the scene Minimum: Maximum: $: 0 \mathrm{~cd} / \mathrm{m}^{2}$ $: 277 \mathrm{~cd} / \mathrm{m}^{2}$
A dark night-time photograph showing illuminated orange ground features or temporary structures along a road, likely demonstrating lighting effects for a proposed facility.
