Existing Tree Survey

Ellis Brown Architects Revision B – 03/03/2026 Tree survey / record photos – Baldrine Farm – Field refs 612727 and 612728

trunk diameter Measured 1.5m from the ground Red highlight indicates existing trees to be removed

Tree No	Location	Species	Size* (m)	RPA (m)	Class
1	Field 612727 South Boundary of site – adjacent field gate	Sycamore	1.2	14.4	C
2	Field 612727 South West corner of site	Ash	0.5	6
3	Field 612727 West Boundary of site – (Adj Power cables)	Ash	0.6	7.2
4	Field 612727 West Boundary of site – (Adj power cables) (multi stemmed)	Ash	2 @ 0.4m	4.8
5	Field 612727 East Boundary of site	Ash	0.6	7.2
6	Field 612728 South Boundary of site – west corner	Hawthorn	0.4	4.8
7	Garden of Honey Hey -	Cherry	0.3	3.6
8	Garden of Birkdale	Cherry	0.3	3.6
9	Garden of Follaton	Silver birch
10	Field 612728 South boundary – Follaton	Ash	0.3	3.6
11	Field 612728 South boundary – Follaton	Holly	0.15	1.8
12	Field 612728 South boundary – Follaton	Ash	0.5	6
13	Field 612728 South boundary – Follaton (multi stemmed)	Ash	0.3 &<br>0.4<br>	3.6 & 4.8
14	Field 612728 boundary – Follaton	Beech	0.4	4.8
15	Field 612728 boundary – Follaton adj Field gate in corner	Hawthorn	0.4	4.8
16	Field 612728 East boundary – on railway line embankment Multi stemmed	Sycamore	0.1 x 3	1.2
17	Field 612728 East boundary – on railway line embankment	Ash	0.08	1
18	Field 612728 East boundary – on railway line embankment	Sycamore	0.12	1.44
19	Field 612728 North East boundary – outside site boundary	Hawthorn	0.15	1.8
20	Field 612728 North boundary. 4m outside site boundary Multi stemmed	Sycamore	0.7	8.4
21	Field 612728 North boundary. 1.5m outside site boundary Multi stemmed	Holly	0.15	1.8
22	Field 612728 North boundary. 2m outside site boundary Multi stemmed	Sycamore	0.7	8.4
23	Field 612728 North boundary. 2m outside site boundary	Sycamore	0.9	10.8
24	Note – Embankment beyond includes conifer / pines trees mixed into the species recorded
	Field 612728 North boundary. 2m outside site boundary	Pine	0.5	6
25	Field 612728 North boundary. 3m outside site boundary. Collection of trees (approx. 5)	Pine	0.4	4.8
26	Field 612728 North boundary. 1m outside site boundary.	Sycamore	0.8	9.6
27	Field 612728 North boundary. 2m outside site boundary.	Pine	0.3	3.6
28	Field 612728 North boundary. On site boundary (lots of ivy)	Holly	0.3	3.6

29	Field 612728 North boundary. 4m outside site boundary Group of Pines (approx. 6) Fallen and leaning into tree 29.	Pine	0.2-0.3	2.4 – 3.6
30	Field 612728 North boundary. (on Boundary fence)	Sycamore	1.2	14.4
31	Field 612728 North boundary. 1 m outside site boundary	Ash	0.5	6
32	Field 612728 North boundary. 1 M outside site boundary (needs to be cut back)	Ash	0.8	9.6
33	Field 612728 North boundary. 2m outside site boundary – Covered in Ivy	Ash	0.8	9.6
34	Field 612728 North boundary. 4m outside site boundary	Pine	0.4	4.8
35	Field 612728 West boundary on hedge line	Hawthorn	0.3	3.6
36	Field 612728 West boundary on hedge line	Ash	0.5	6
37	Field 612728 West boundary on hedge line	Hawthorn	0.3	3.6
38	Field 612728 West boundary on hedge line	Holly	0.2	2.4
39	Field 612728 West boundary on hedge line	Hawthorn	0.2	2.4	U
40	Field 612728 West boundary on hedge line Ash Die back is evident.<br><br>	Ash	1.0	12	C

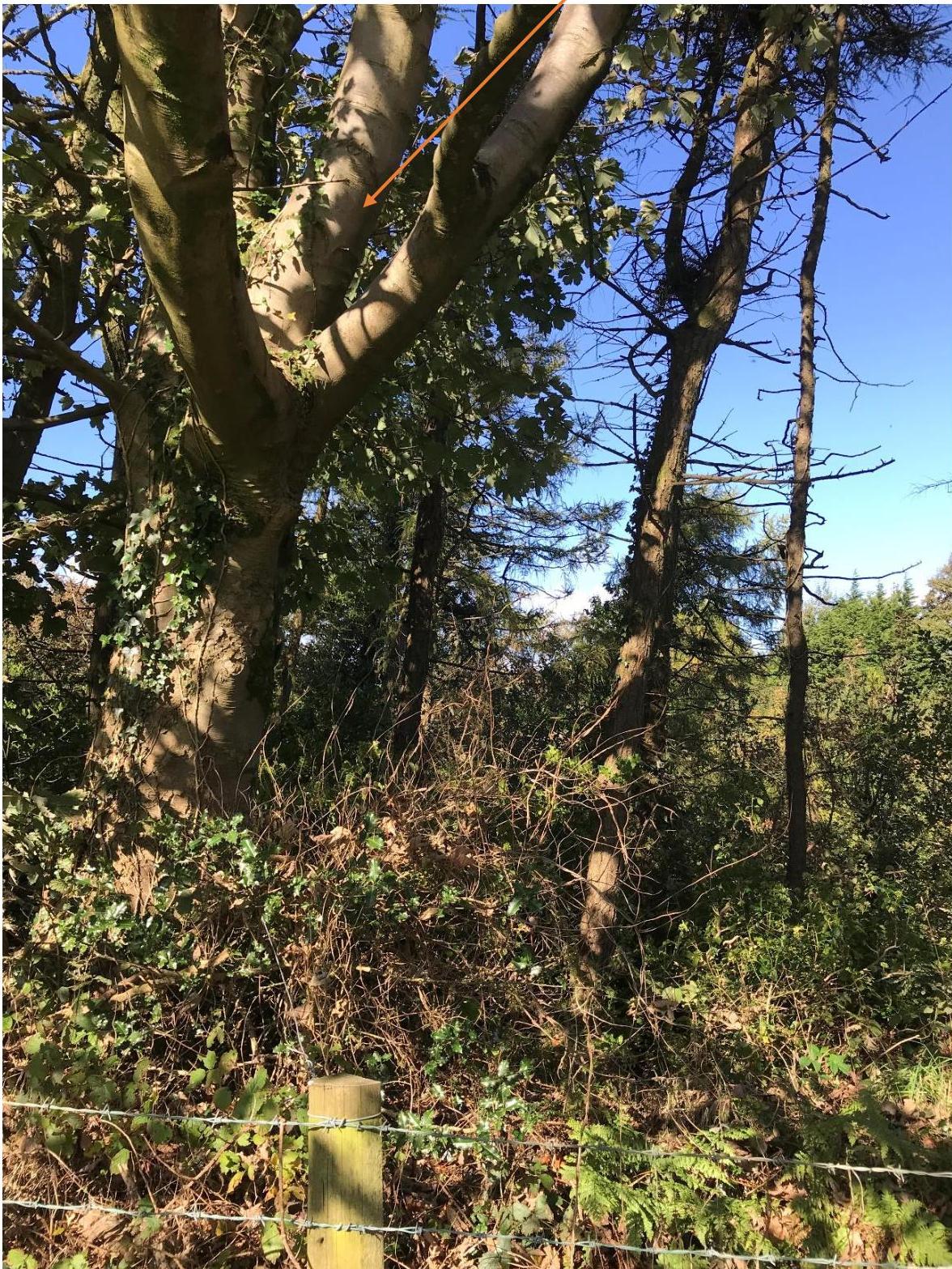

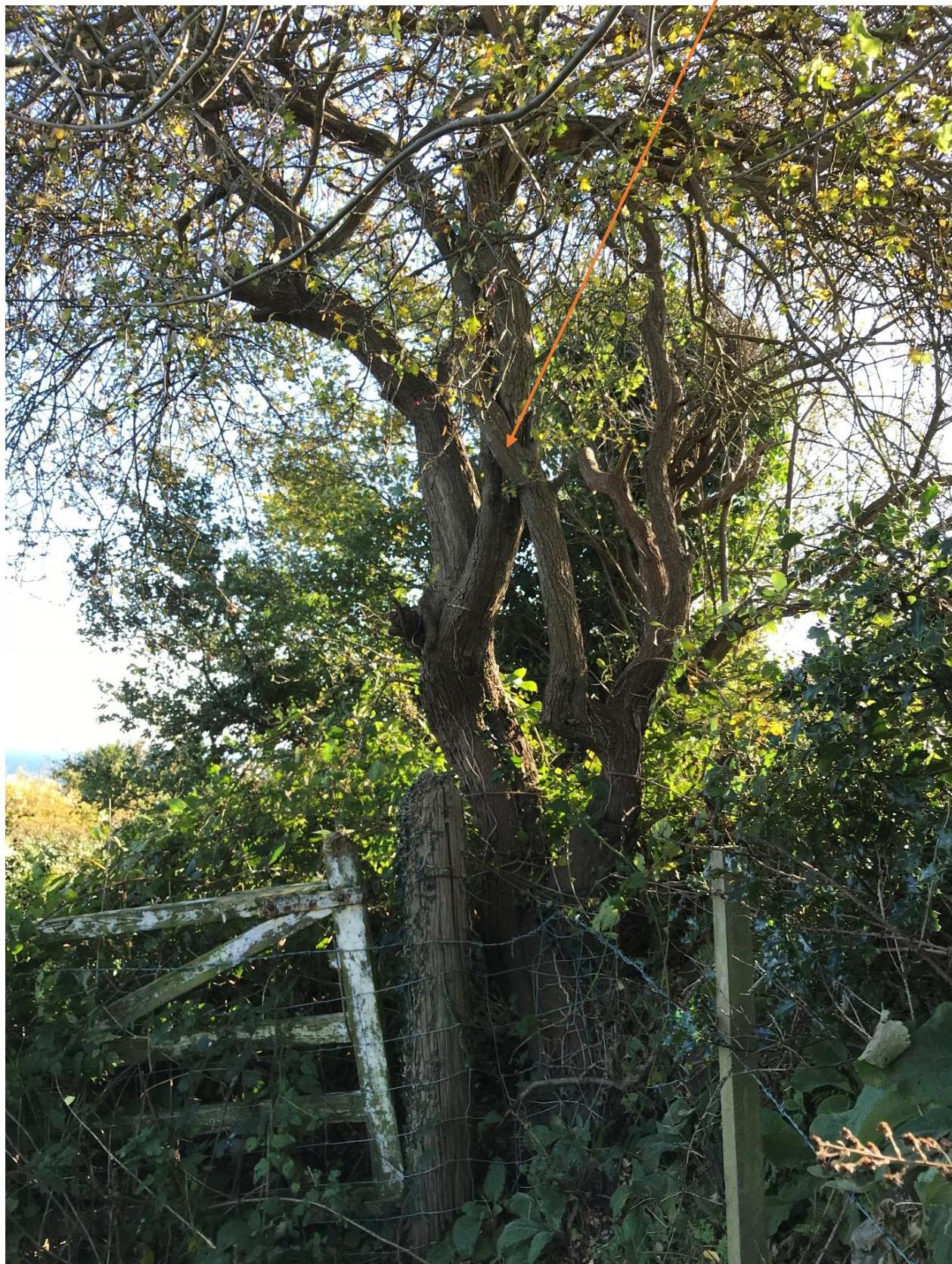

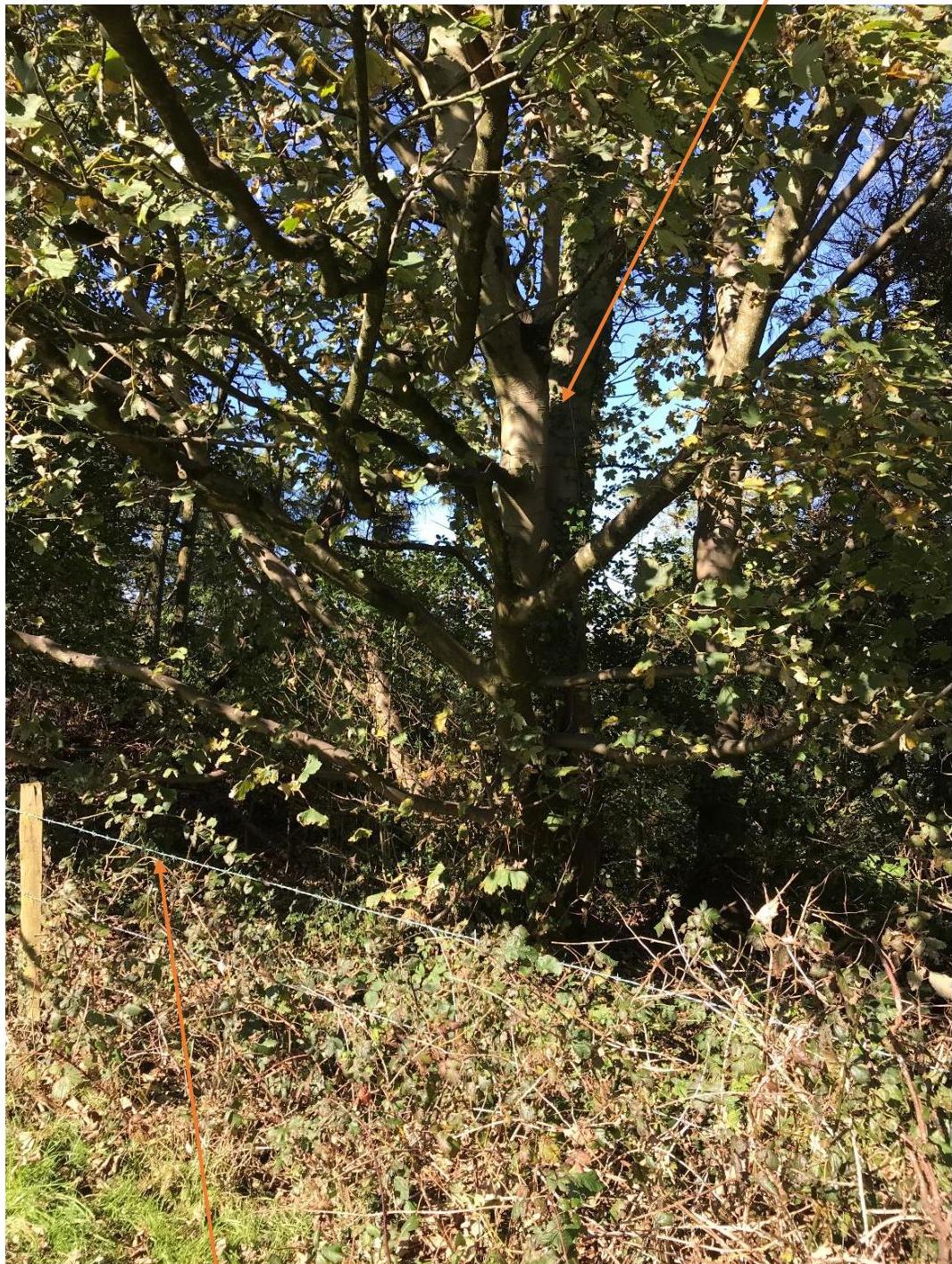

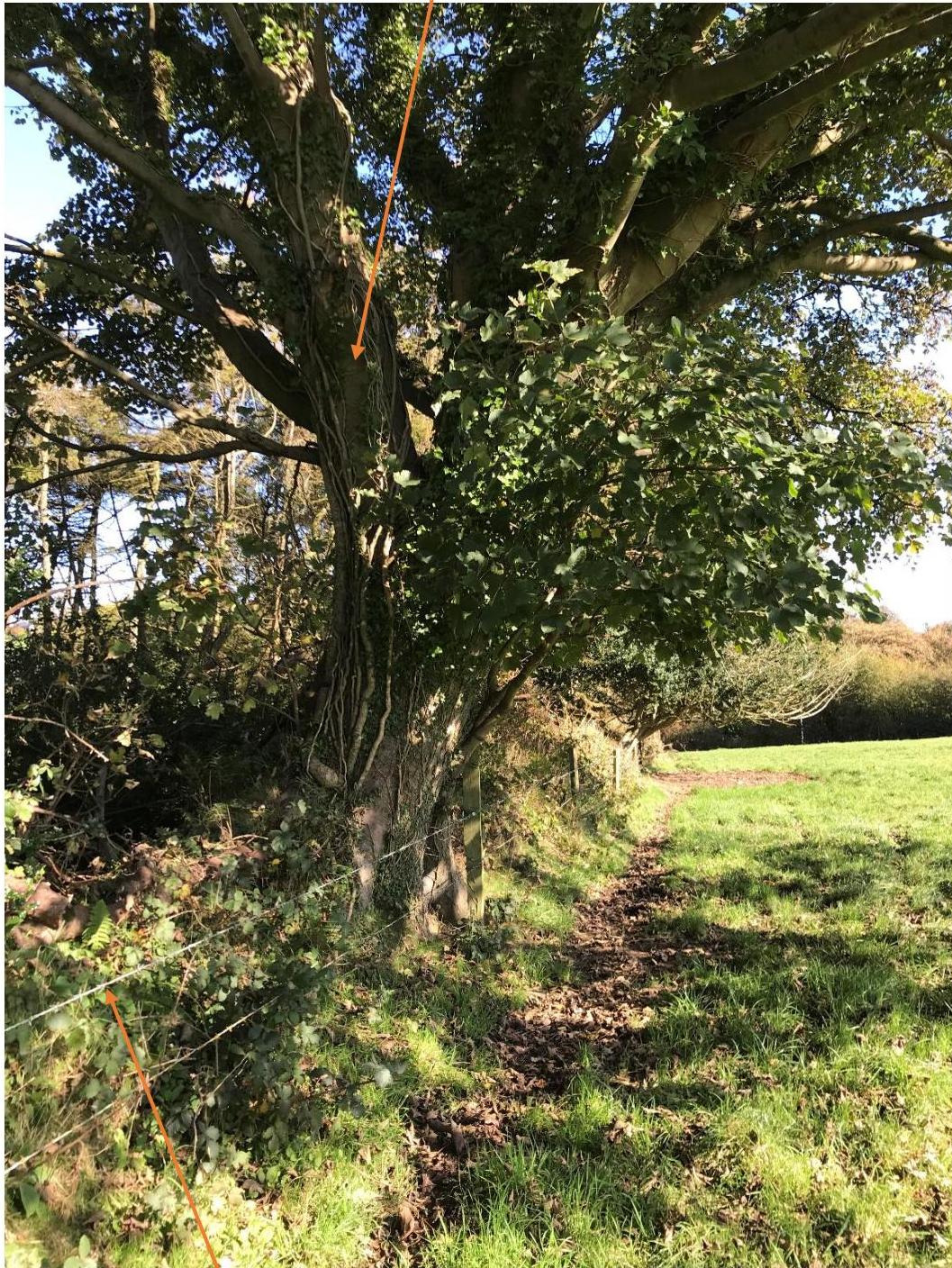

Photographic record of trees / hedges Field 612728 South boundary Tree ref 6

Field 612728 South boundary Silver Birch in garden of Follaton

• Field 612728 South boundary Tree ref 10
• Field 612728 South boundary Tree ref 11, 12 & 13

Field 612728 East boundary General tramline boundary condition - Hedgerows

Field 612728 East boundary Numerous small (mixed) species on tramline embankment outside the site

These trees are difficult to measure as they are located on the embankment beyond the fence. All less that 10cm stems

Field 612728 East boundary (northern end) Small stemmed ash Tree 18 Field 612728 North East corner / boundary Holly at corner of field – tree ref 19

Field 612728 North boundary Tree ref 25

Tree collection A – Pines falling into Holly (Tree ref 29)

Field 612728 North boundary

Tree Ref 30

Clearing with Pines (ref 34) Trees ref 31,32 & 33

Field 612728 West boundary Tree ref 37 Tree ref 36

Tree ref 40 Tree Ref 38 Tree ref 36
